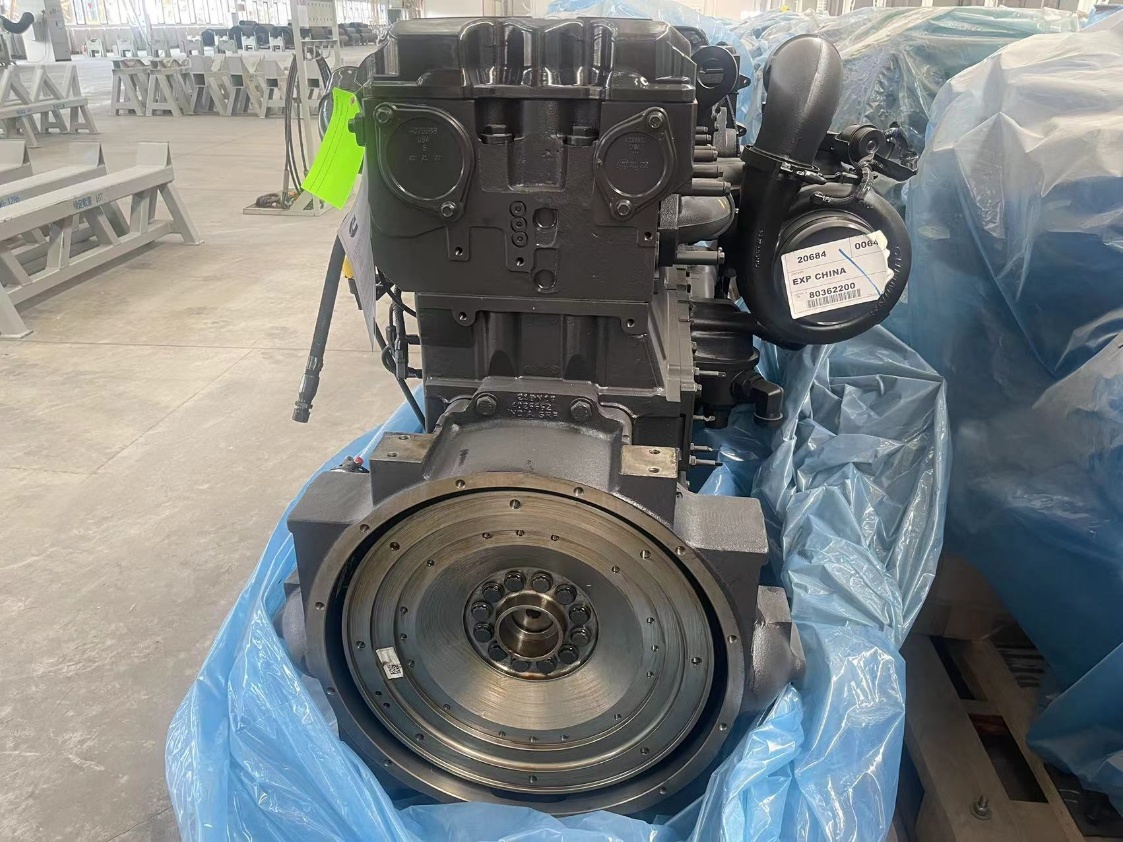

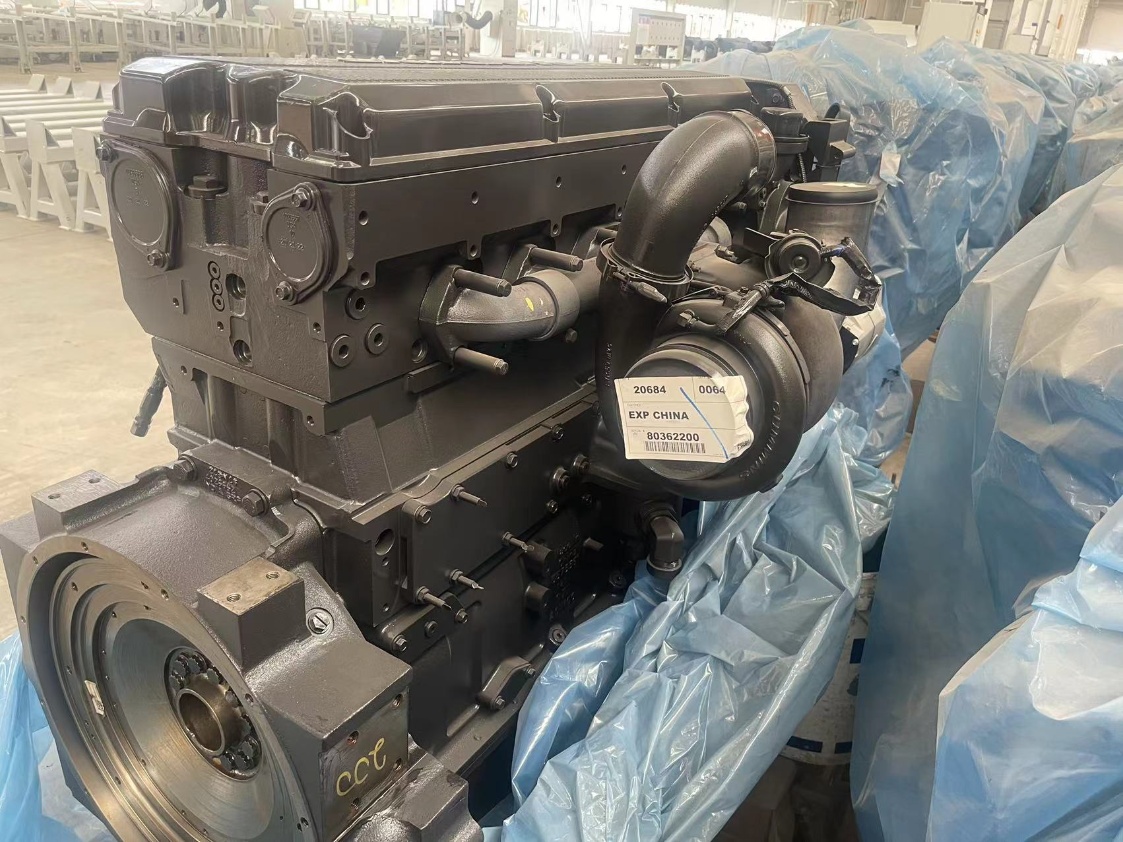

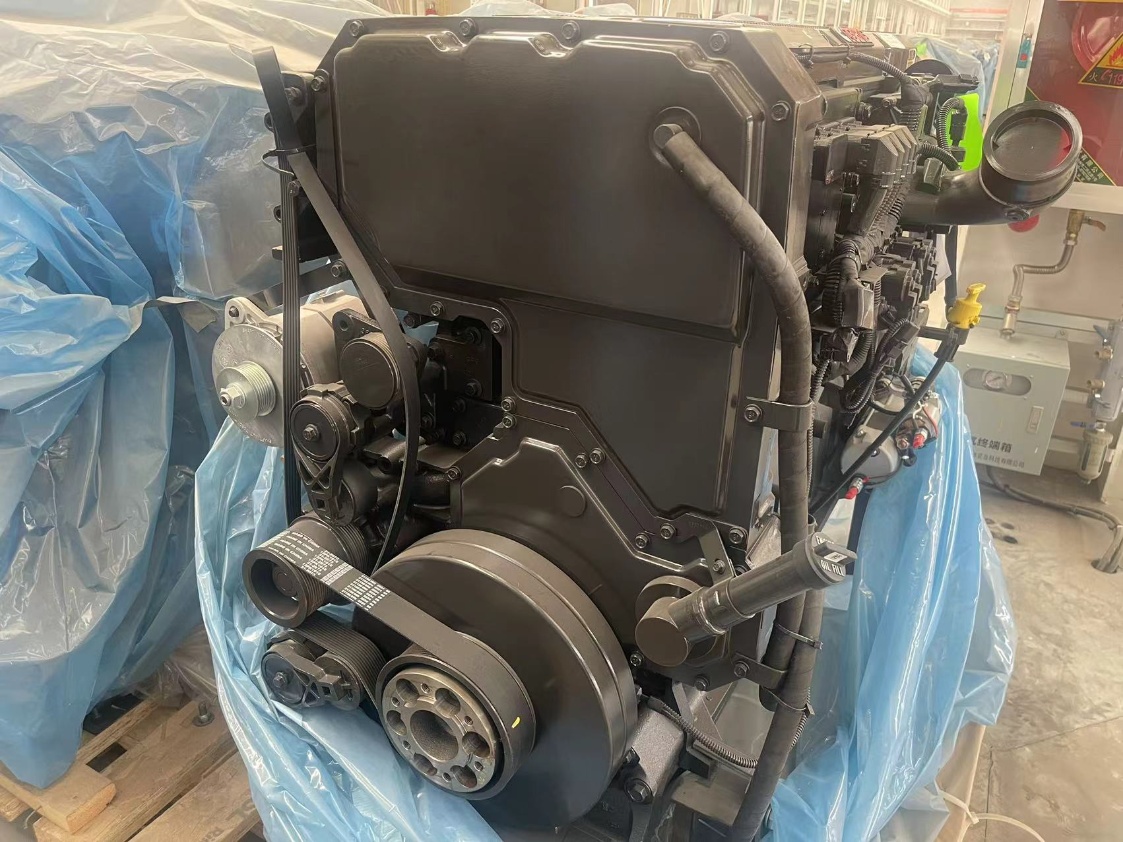

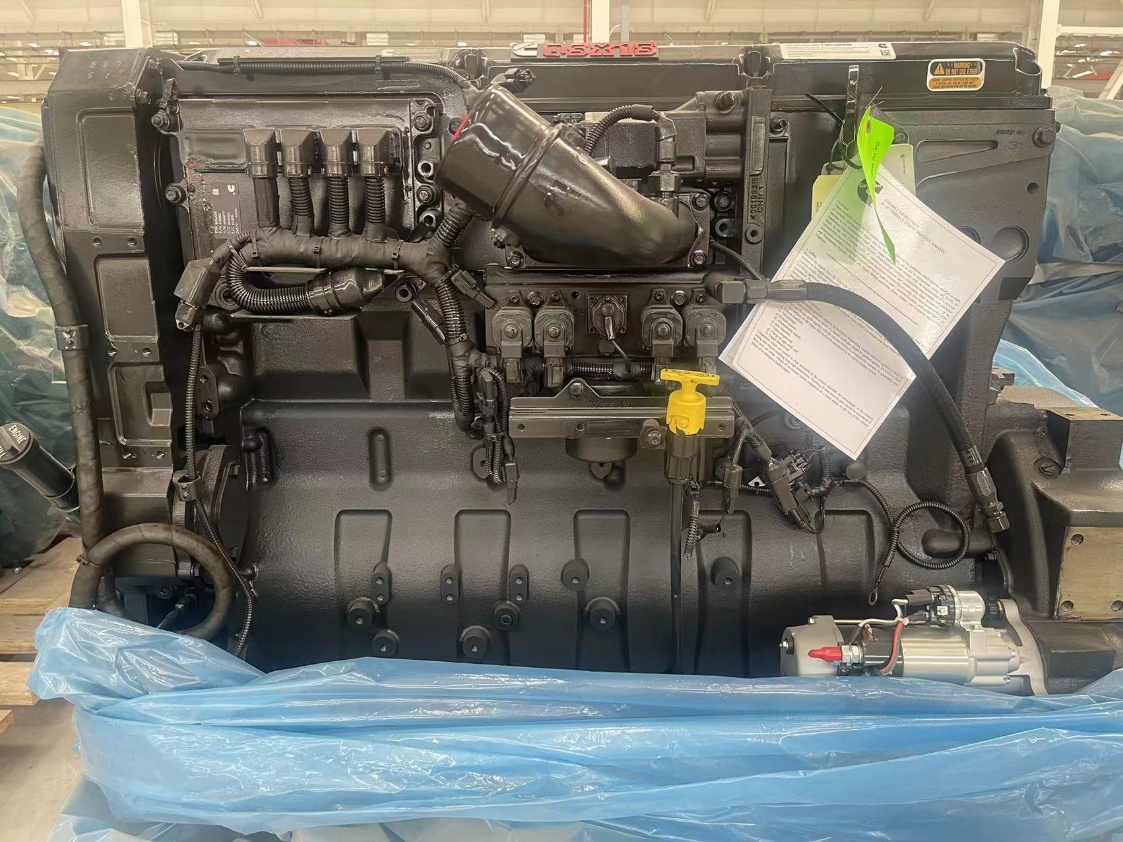

Cummins Engine QSX15 C535

Basic Info

Model No.: QSX15 C535

Brand: Top Brand

Additional Info

Packaging: Wooden Case

Productivity: 100 set/month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 sets/month

Certificate: ISO9001

Port: SHANGHAI,LIANYUNGANG,QINGDAO

Product Description

Introduction to QSX15 C535 Engine

The QSX15 C535 engine is a robust and powerful engine designed by Cummins, known for its high performance and reliability. This engine is part of Cummins' Quantum Series, which is recognized for its innovative technology that delivers more power and torque in a compact package. The QSX15 C535 is designed to meet stringent worldwide emissions standards while providing operators with superior value and reliability. It is widely used in various applications,including construction machinery, agricultural, mining and airport ground handling equipment.

Xuzhou Shunming Construction Machinery Co., Ltd. Was established in 2019. It is a comprehensive enterprise integrating new and old construction machinery procurement, maintenance and preparation, sales, warehousing, transportation, machinery operation and financial services. Our main products are Concrete Pump Truck,Concrete Mixer Truck,Dump Truck,Truck Crane,Wheel Loader and so on.

Product Parameters Table

Additional Materials

Features and Benefits:
- High Pressure Injection Fuel System (HPI): The Cummins HPI system injects fuel at up to 30,000 psi (206,842 kPa) for improved response and fuel economy. Continuously variable timing achieves low emissions.
- Quantum System Electronic Controls: Programmable features optimize engine performance to specific duty cycles and job requirements. Continuously monitors engine conditions and automatically adjusts for peak operation. Improved durable aluminum channel wiring harness allows easy servicing.
- Dual Overhead Cams: One drives the high-pressure fuel system, the second operates the intake and exhaust valves, providing outstanding life and performance.
- Advanced Electronics: Programmable engine controls optimize combustion at all altitudes and conditions. They provide advanced monitoring, diagnostic, prognostic, and reporting capabilities.
- Patented Wastegated Turbo: Delivers maximum performance without overboost at high speeds as well as increased airflow at lower speeds for improved responsiveness.
Global Support Network: Backed by the strength of the Cummins global network of over 5,500 service locations in 160 countries, ensuring worldwide support every time.
Maintenance Intervals: Engine Oil up to 625 hours or 6 months.
Engine Accessories and Parts: Cummins offers a range of genuine parts for the QSX15 engine, including piston components, cylinder liners, piston rings, and turbochargers, ensuring optimal performance and longevity of the engine.
