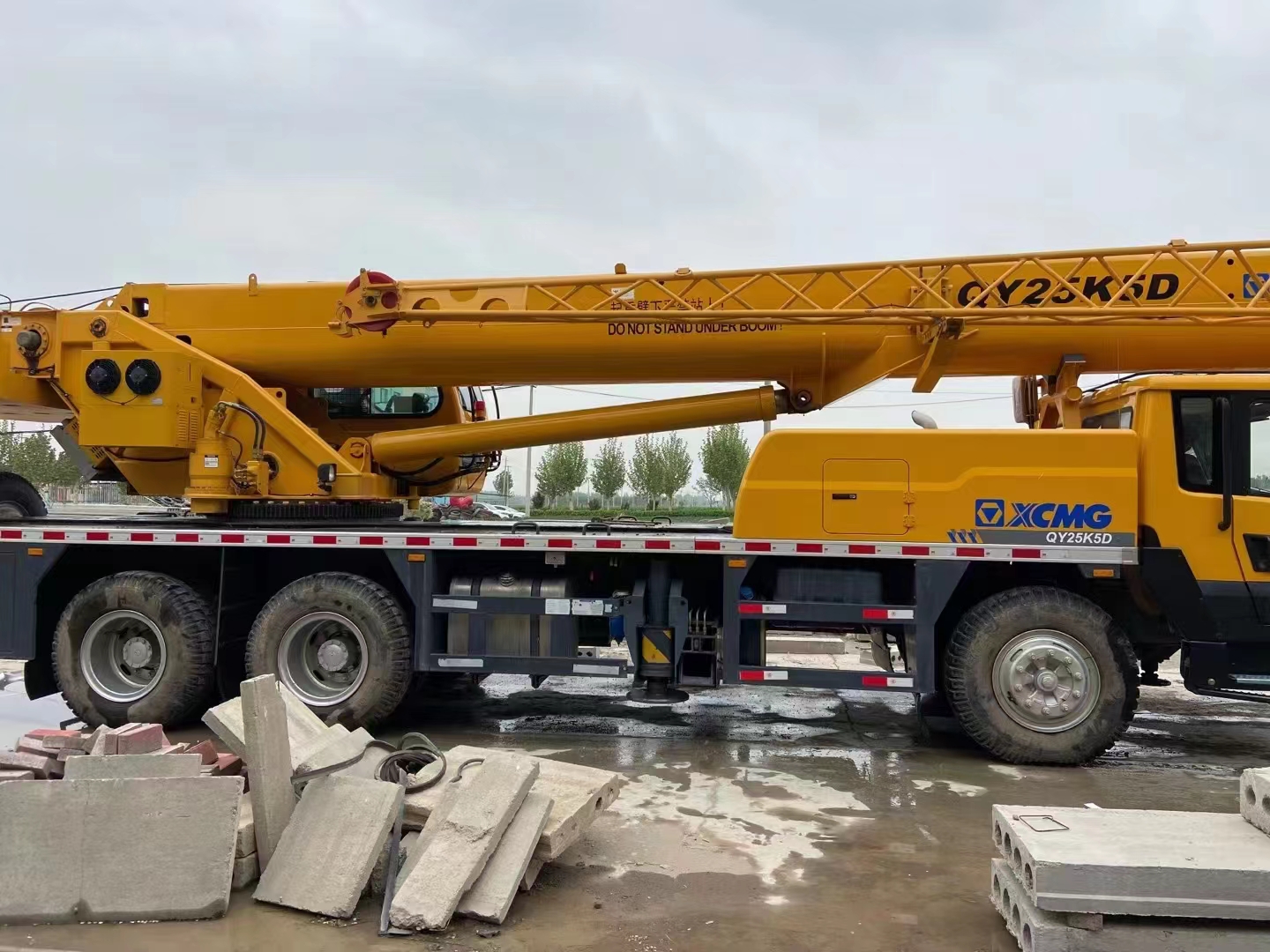

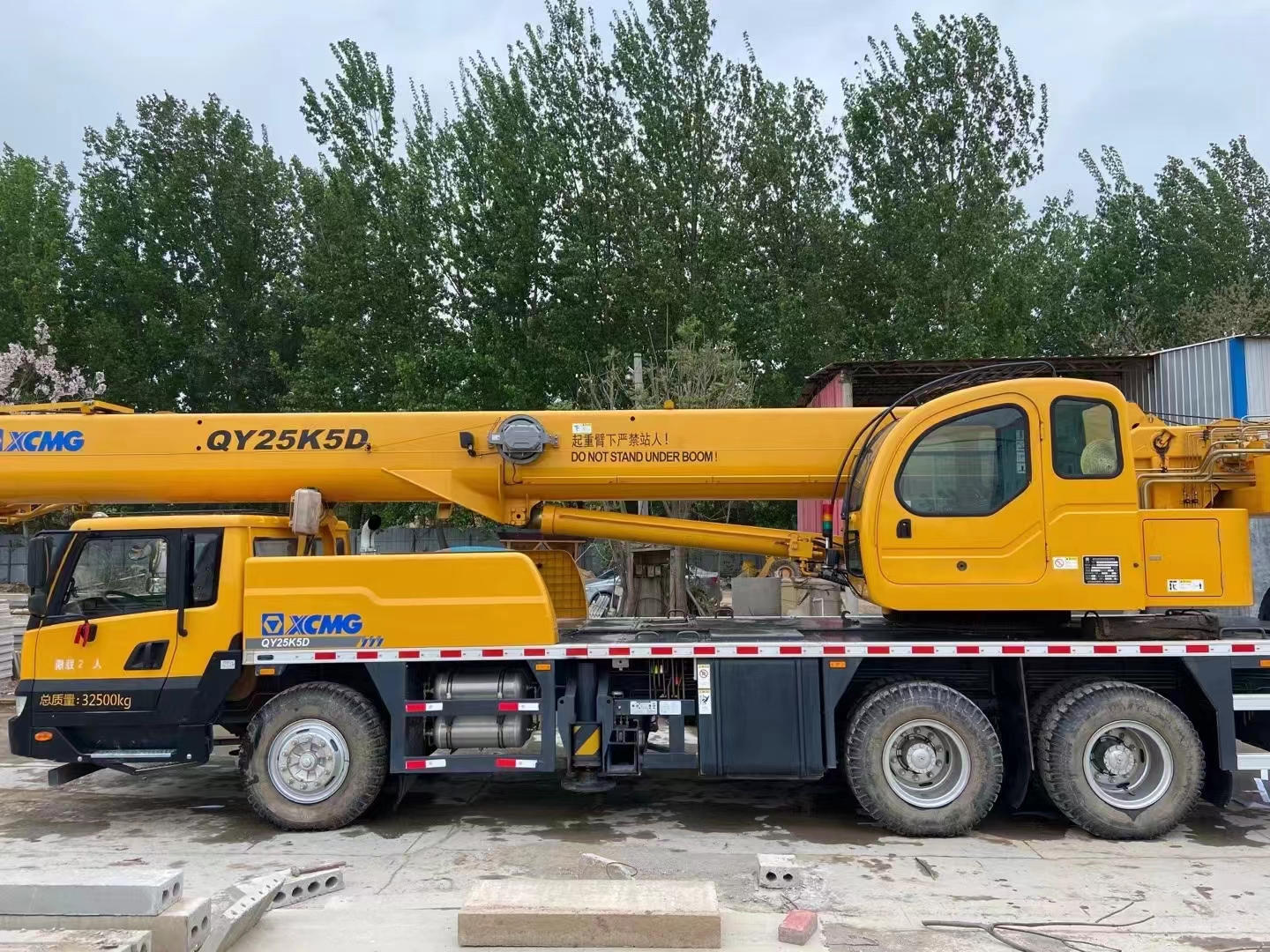

The XCMG QY25K5D is a high-performance truck crane designed for versatility and efficiency in various lifting operations. With a maximum lifting capacity of 25 tons, this crane is equipped with a comprehensive set of features that enhance its lifting performance. It boasts an overall length of 12,780 mm, a width of 2,500 mm, and a height of 3,400 mm, providing a stable and robust platform for operations. The outrigger span is adjustable, offering a maximum longitudinal spread of 5.14 meters and a lateral spread of 6.0 meters, ensuring stability during operations.
Powered by either a MC07H.32-50 or a SC9DF300.1Q5 engine, the QY25K5D offers substantial power and torque, making it ideal for handling demanding lifting conditions. It can travel at a maximum speed of 80 km/h and features excellent maneuverability with a minimum turning diameter of less than 22 meters. The main boom reaches up to 41 meters, while the additional fixed jib extends the operational height to 48.5 meters, allowing for versatile setup configurations.
The crane's hoisting, telescoping, and slewing operations are powered by a highly efficient hydraulic system that includes a constant delivery pump for smooth and precise movements. The robust, anti-torsion box-type frame made from high-strength steel ensures durability and safety. The hydraulic system includes load-sensitive proportional multi-way valves with impact-resistant and anti-cavitation valves, enhancing operational safety and efficiency.
The operator's cabin is ergonomically designed for comfort and includes adjustable seats, safety glass, and an integrated air-conditioning system, making it suitable for extended periods of operation. Safety devices such as hydraulic balance valves, an anemometer, and a winch monitoring device are standard, ensuring the safety of crane operations and personnel. The XCMG QY25K5D truck crane combines advanced engineering, significant lifting capacity, and comprehensive safety features to deliver high-performance lifting capabilities suitable for a wide range of applications in the construction and industrial sectors.

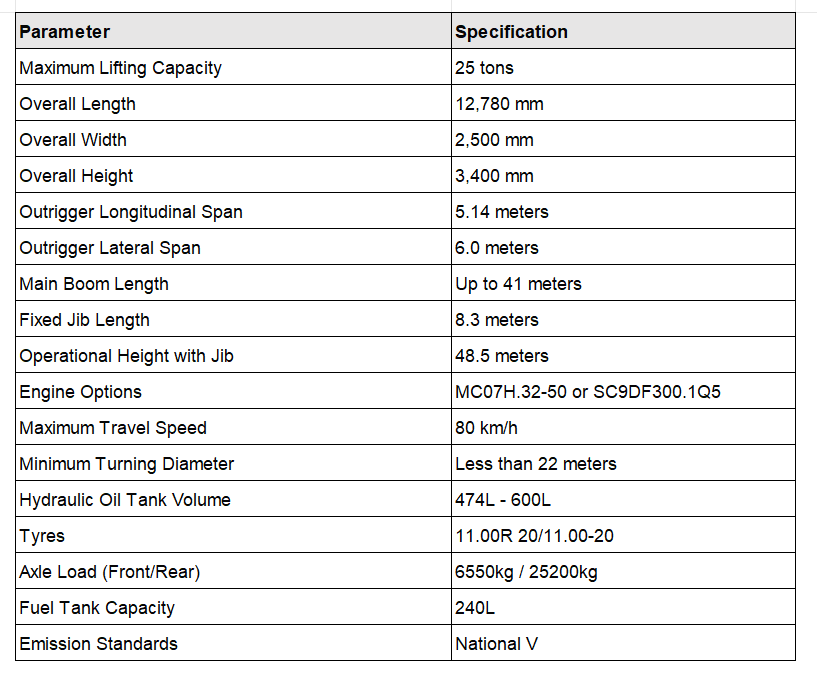

Product Parameters Table for XCMG QY25K5D Truck Crane
