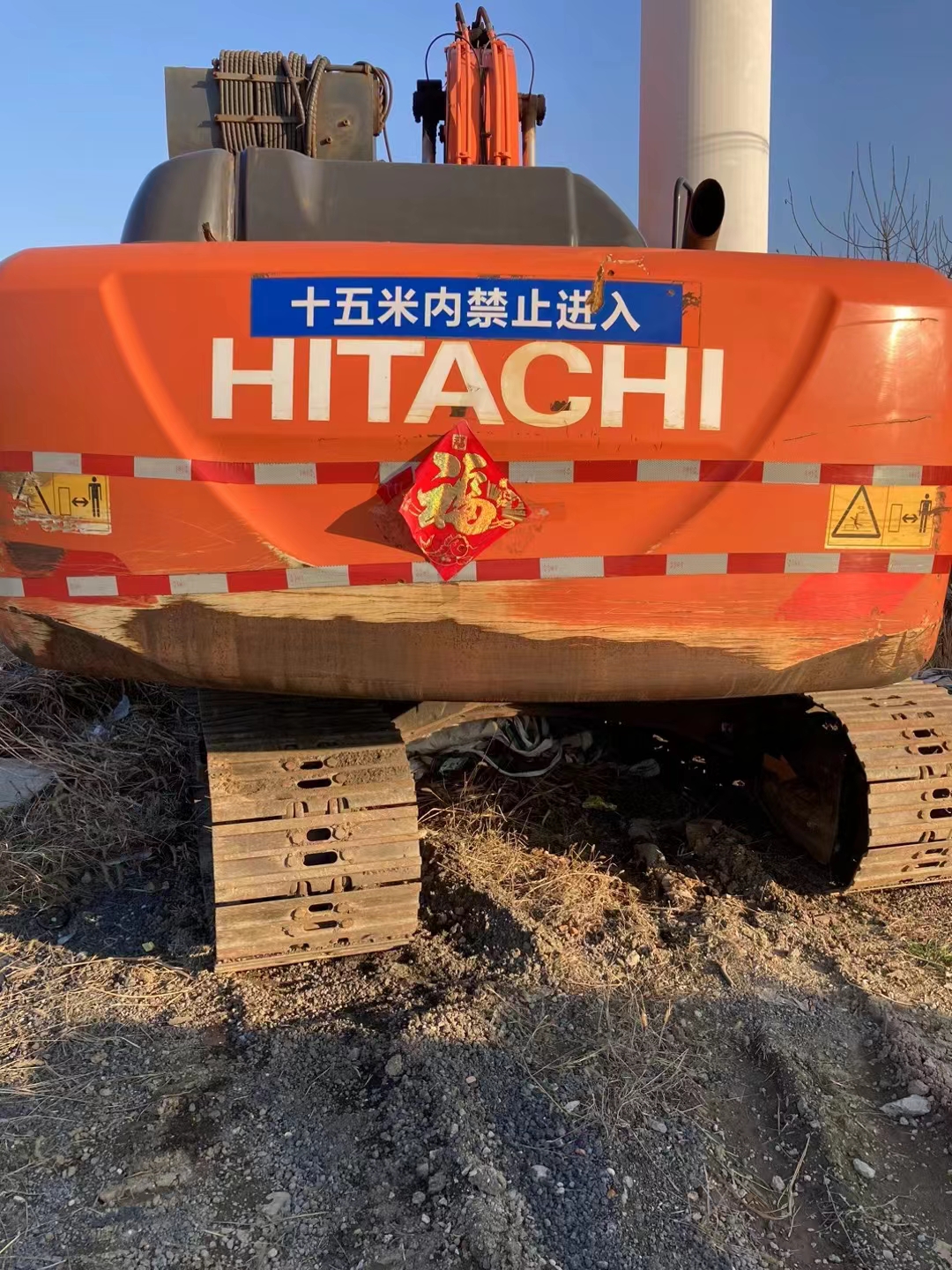

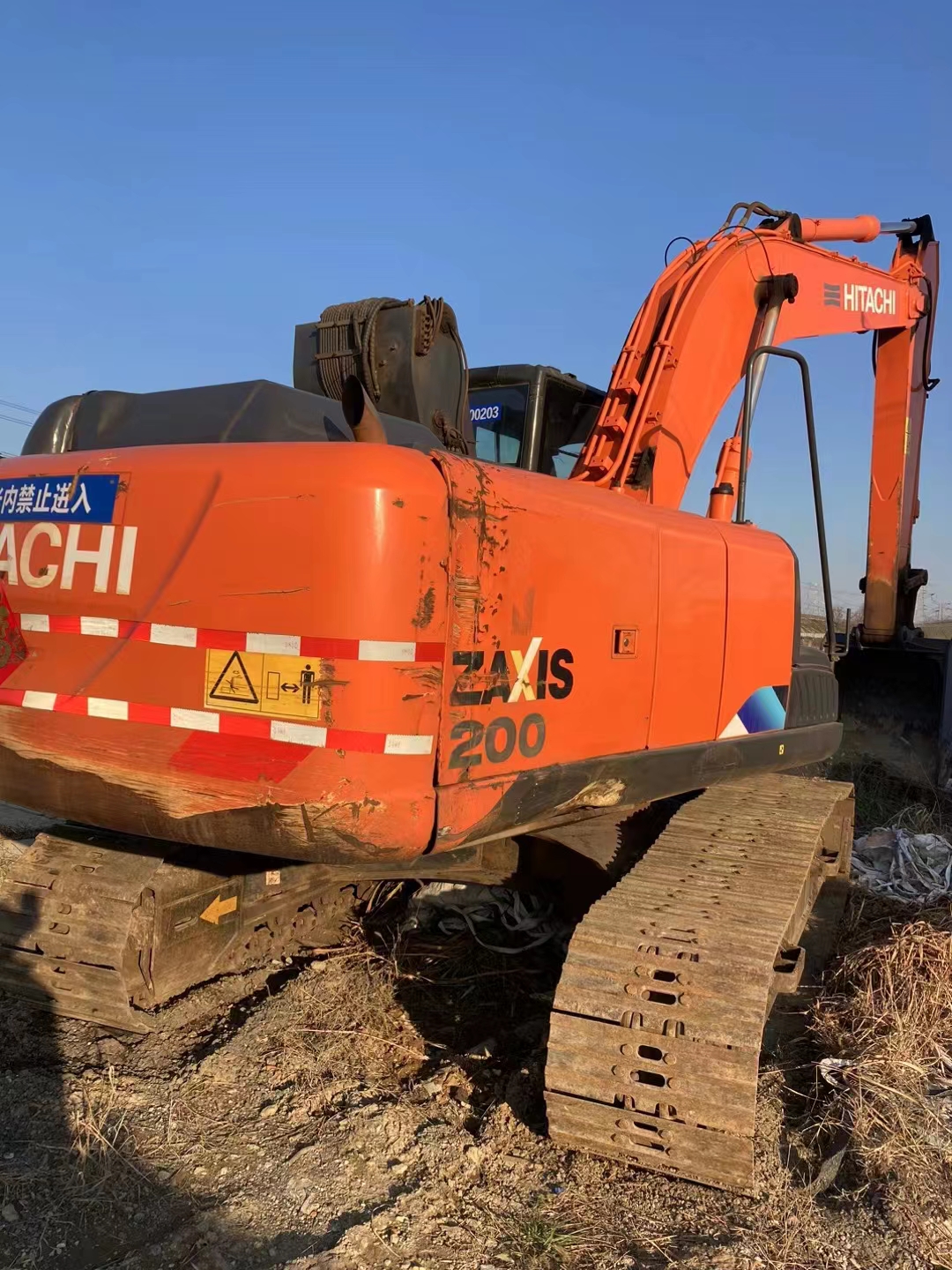

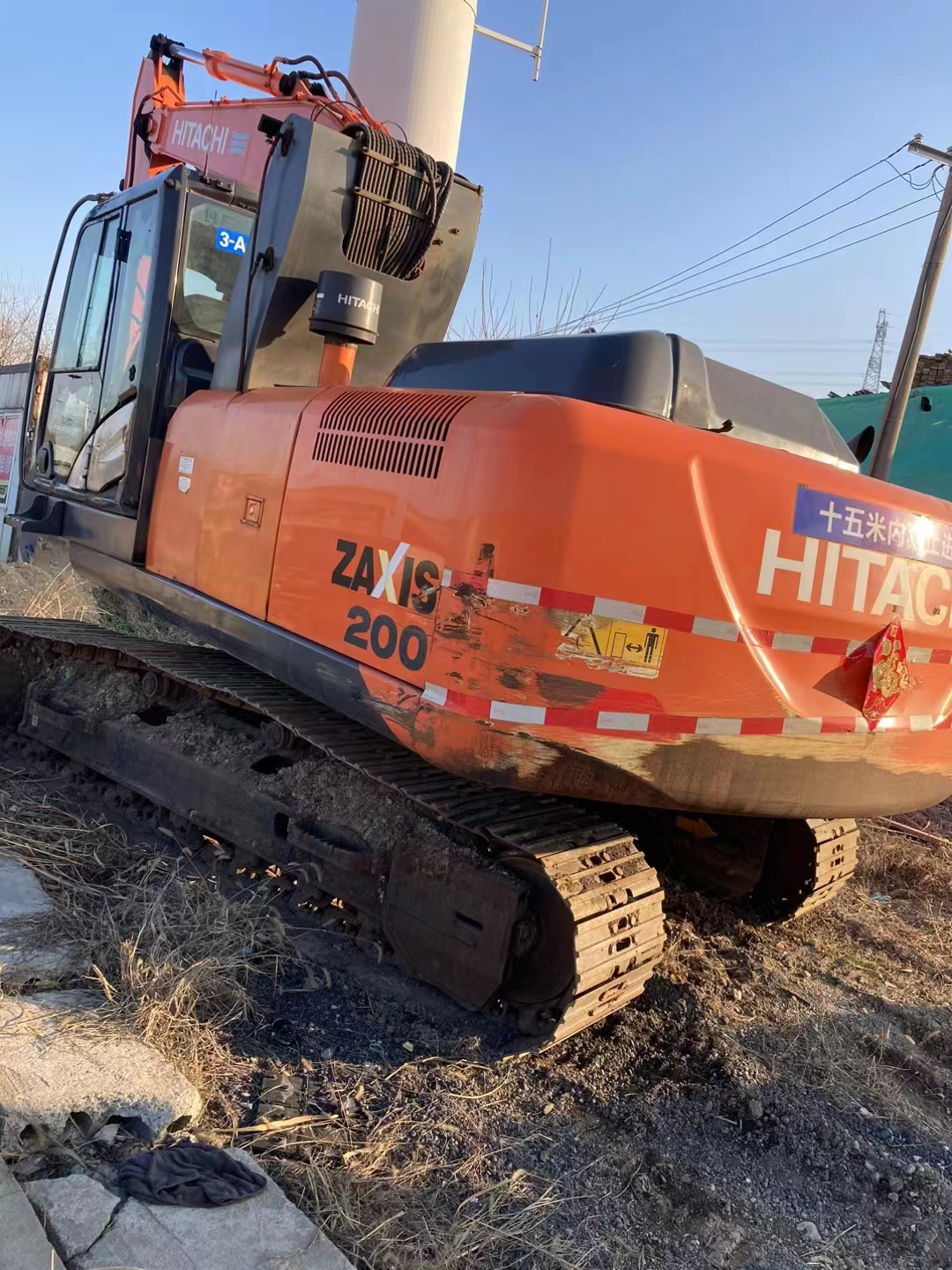

Used Hitachi ZX200-5A Crawler Excavator

Hitachi ZX200-5A Excavator

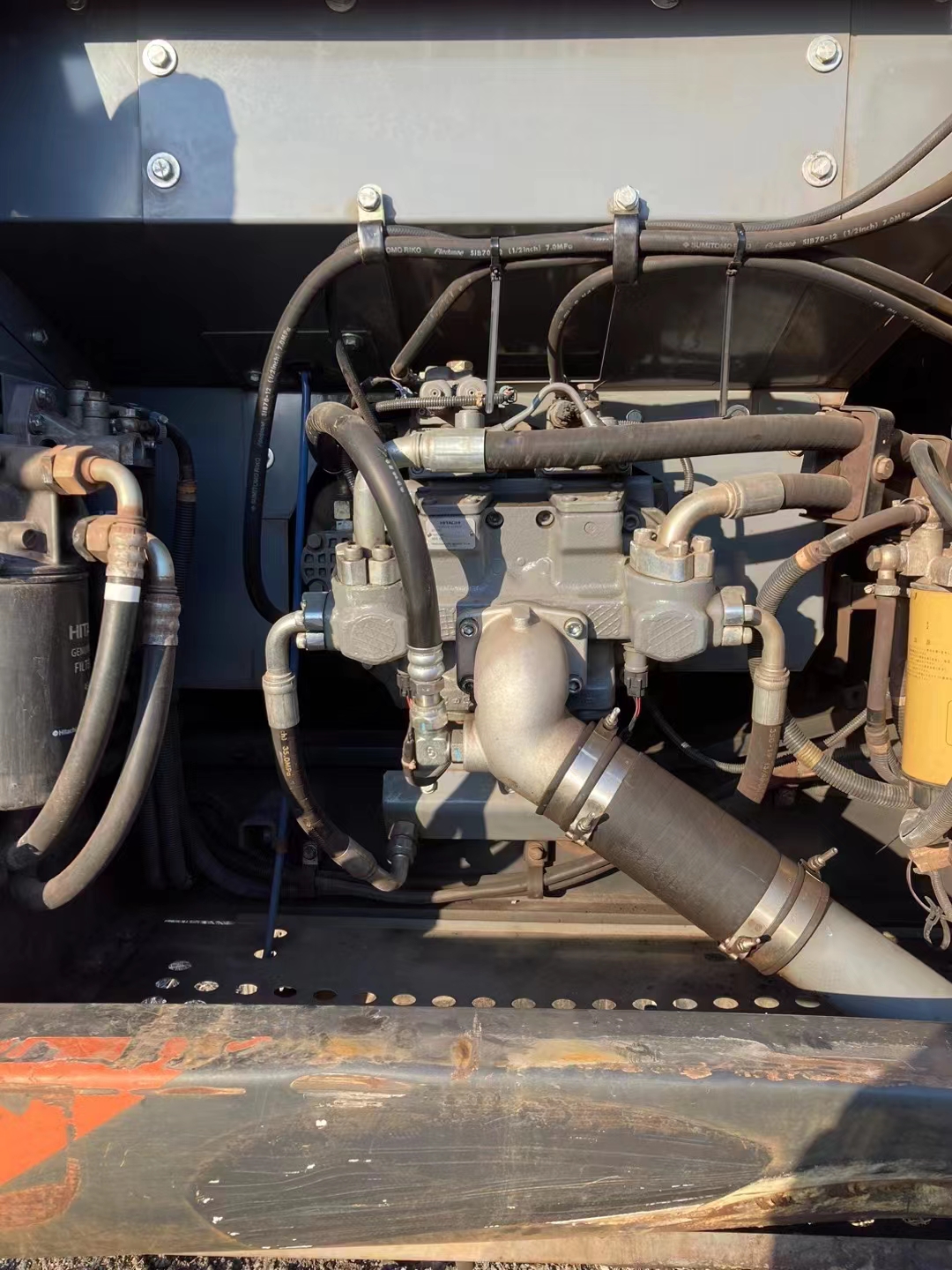

The Hitachi ZX200-5A excavator is a powerful and efficient machine designed for a variety of construction tasks. It features an original imported high-quality and durable engine, equipped with a high-pressure common rail electronic injection system and a cool EGR system. Combined with Hitachi's HIOS III hydraulic system, it effectively improves fuel efficiency and enhances work performance. The ZX200-5A is known for its strong work capabilities, efficient operation, precise control systems, safety, comfort, and ease of maintenance. It is a reliable choice for any construction project.

Xuzhou Shunming Construction Machinery Co., Ltd. Was established in 2019. It is a comprehensive enterprise integrating new and old construction machinery procurement, maintenance and preparation, sales, warehousing, transportation, machinery operation and financial services. Our main products are Concrete Pump Truck,Concrete Mixer Truck,Dump Truck,Truck Crane,Wheel Loader and so on.

Product Parameters Table for Hitachi ZX200-5A Excavator

Specification	Details

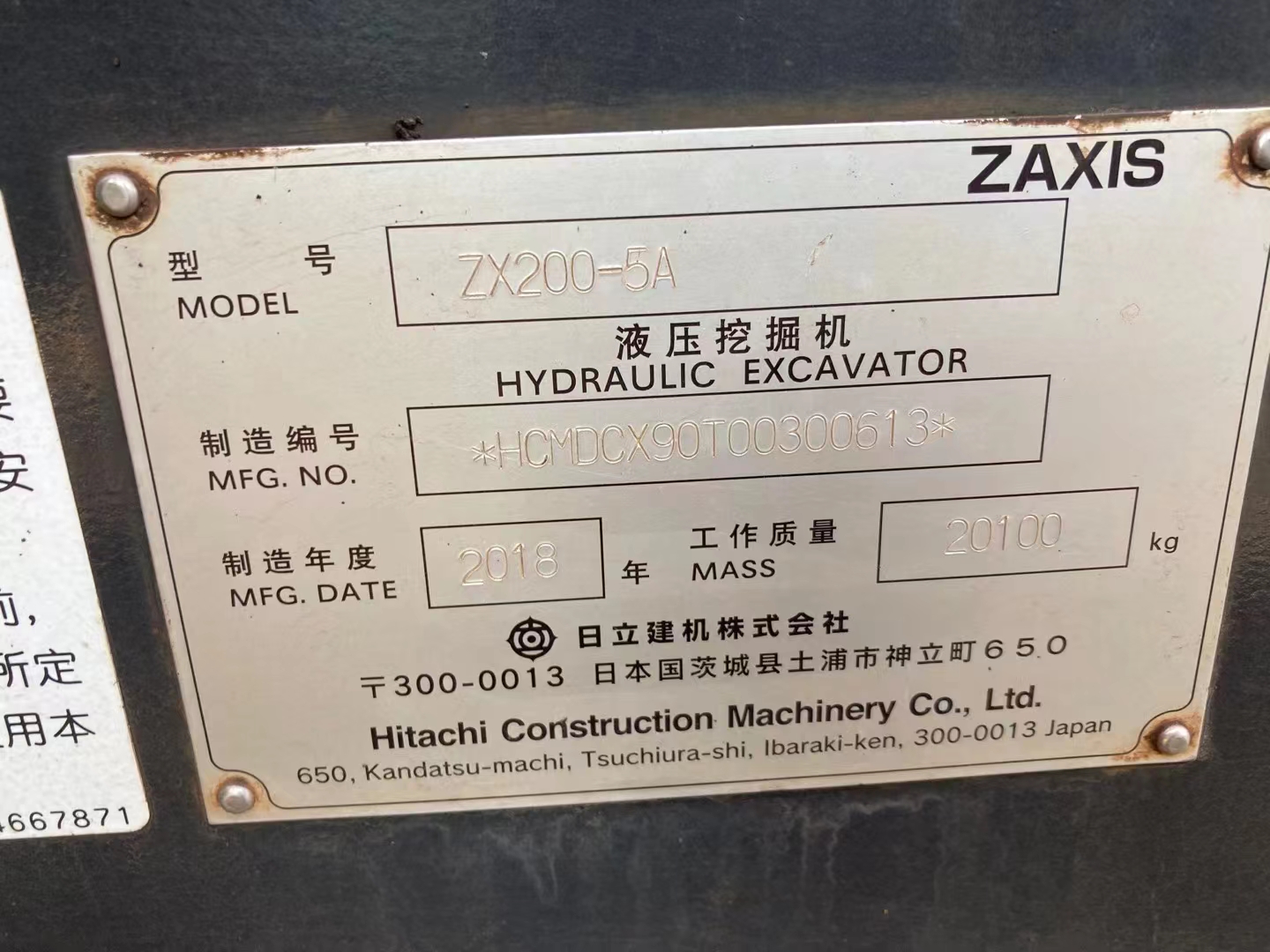

Model	ZX200-5A
Engine Model	Isuzu GI-4HK1XKSA-02
Rated Power (kw/rpm)	113/2000
Maximum Torque (N.m)	638/1500
Displacement (L)	5.193
Cylinders	4
Cooling System	Water-cooled
Fuel System	4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled
Operating Weight (kg)	20200-20300
BUCKET CAPACITY (ISO Full Bucket) (m³)	0.91
Arm Length (mm)	5680
Boom Length (mm)	2910
Rotation Speed (rpm)	13.5
Rotation Torque (Nm)	68
Travel Speed (km/h)	5.5/3.5
Climbing Ability (%)	70
Ground Pressure (Kpa)	45
BUCKET挖掘力 (kN)	158
Boom挖掘力 (kN)	114
Fuel Tank (L)	400.0
Hydraulic Tank (L)	135.0
Hydraulic System (L)	31.0
Engine Oil Change Quantity (L)	23.0
Transport Length (mm)	9620
Transport Width (mm)	2800
Transport Height (mm)	3130
Cab Height (mm)	2950
Track Ground Contact Length (mm)	3370
Track Total Length (mm)	46 (ZX200-5A)
Track Shoe Width (mm)	600
Track Total Width (mm)	2800
Track Gauge (mm)	2200
Ground Clearance (mm)	450
Tail Swing Radius (mm)	2750
Max Digging Radius (mm)	9920
Max Digging Depth (mm)	6670
Max Digging Height (mm)	9600
Max Dumping Height (mm)	6780
Max Vertical Digging Depth (mm)	6050
